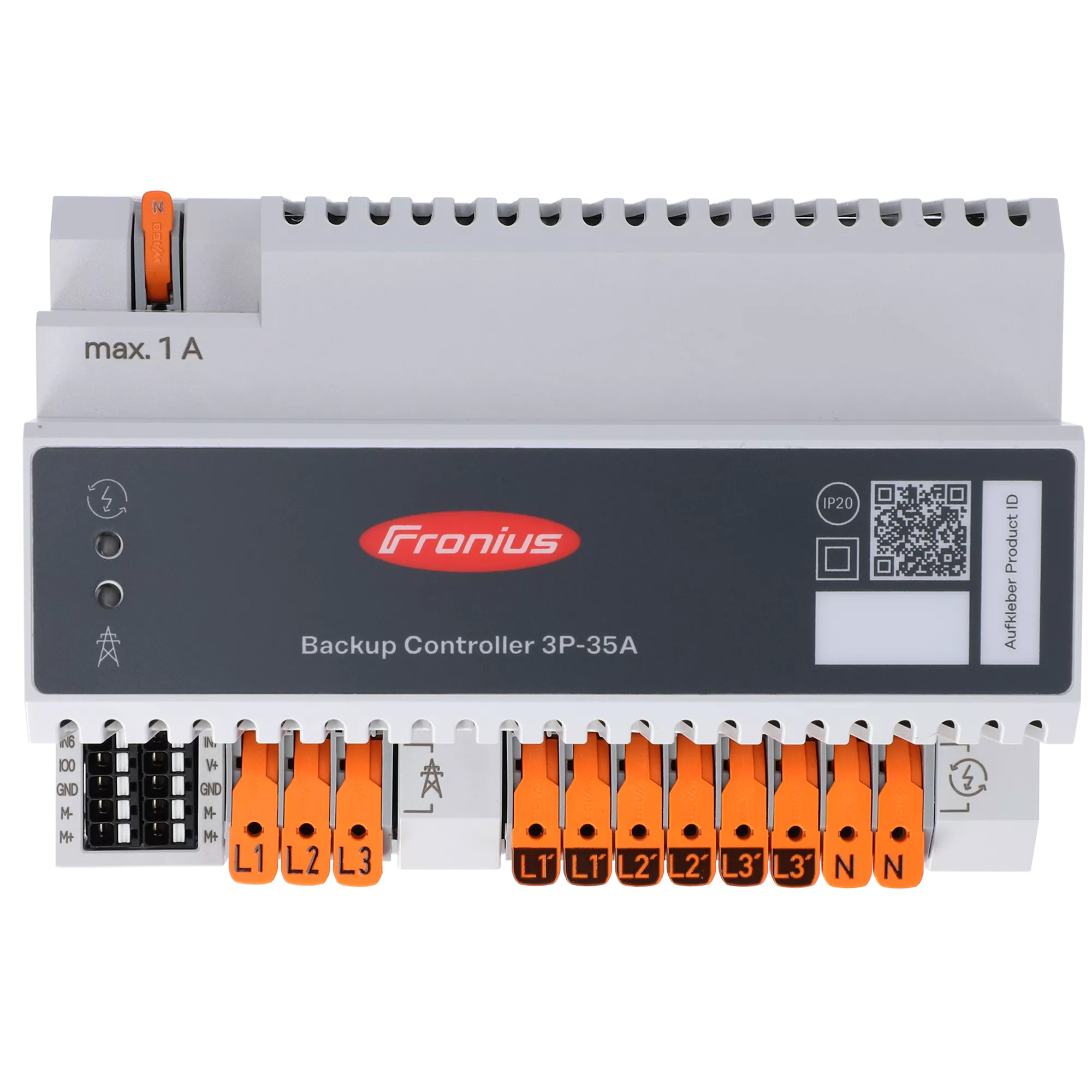

Fronius Backup Controller
Automatically switch to full backup mode
The Fronius Backup Controller is a switching unit that enables an automatic transition to full backup mode. In the event of a power failure, it automatically switches to emergency power mode and back to parallel grid operation as soon as the grid is available. This solution ensures that the entire household always has a reliable power supply, even when nobody is at home.
As a space-saving solution, the Fronius Backup Controller can be installed quickly and easily on a top-hat rail in the control cabinet. This minimises installation work and costs, as an additional switch box is no longer required.
Advantages
/ Automatic solution for maximum security
/ Supply of the entire household even when absent
/ Independent return to normal operation
/ Simple and space-saving installation in the switch cabinet
*Depending on country-specific certification and availability
Please choose your desired product.
Technical Data
General Data
| Certificates and compliance with standards | IEC 60947-6-1 |
|---|---|
| Nominal voltage | 400/230V |
| Nominal Power | 24 kVA |
| Nominal current | 35 A |
| Mains Frequency | 50Hz |
| Grid types | TN-S, TN-C-S |
| Dimension / width | 144 mm |
| Dimension / height | 100 mm |
| Dimension / depth | 66 mm |
| Degree of protection | IP 20 |
| Min. permissible ambient temperature | -20 °C |
| Max. permissible ambient temperature | 60 °C |
| Permitted humidity | 50 % |
| Interference emission class | B |
| Min. cable cross-section (neutral conductor to smart meter) | 1 mm² |
| Min. cable cross-section (phase/neutral conductor) | 2,5 mm² |
| Max. cable cross-section (phase/neutral conductor) | 10 mm² |
| Min. cable cross-section (data communication) | 0,14 mm² |
| Max. cable cross-section (data communication) | 1,5 mm² |
| FRT capability | Yes |
| Mounting type | DIN top hat rail 35 mm |
| Compatible inverters | Symo GEN24 Plus |
| Pitch units top-hat DIN rail | 8 pitch units according to DIN 43880 |
